RELIABLE. EASY-TO-USE. DURABLE.
- 79"
- 28,415 lbs
- 130 HP Cummins
The SAKAI SW884ND Guardman® asphalt roller is engineered for demanding highway paving. It uniquely features true double drum user-selectable (osc / vibe / combo) oscillation powered by a durable low-maintenance gear drive, unlike competitors’ potentially maintenance-intensive belt-driven systems. Oscillation provides continuous tangential kneading forces for efficient aggregate redistribution and uniform density. This results in a smoother surface, crucial for high-quality asphalt compaction and contributing to a lower International Roughness Index (IRI) potential on highway paving projects which leads to possible bonuses, quieter roads, improved braking, and better ride quality.

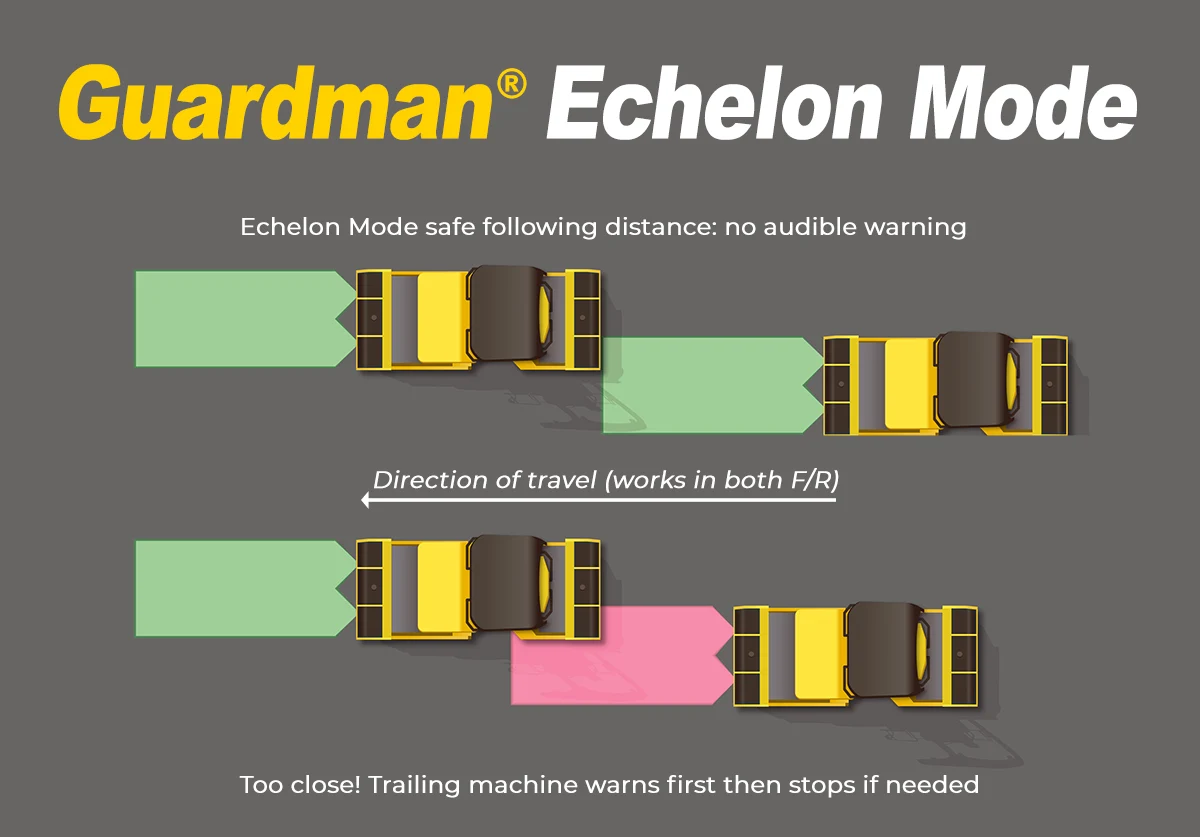

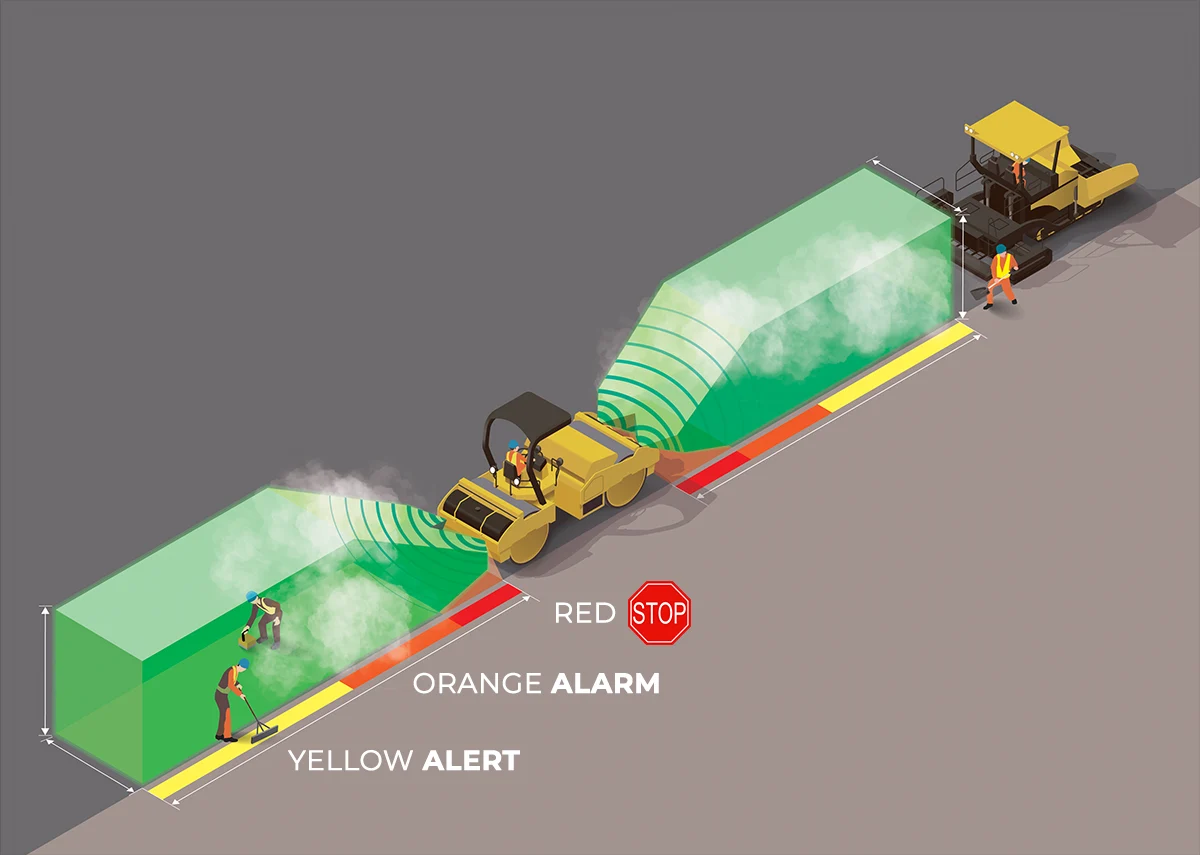

Guardman is an integrated SAKAI-engineered automatic braking safety system for job site collision prevention. This advanced technology provides progressive operator warnings upon detecting a potential hazard in front of or behind the roller, with automatic braking engaging only as a last resort to prevent collisions with personnel or equipment. Additionally, the new Echelon Mode (unique to the SW884 and SW994 series asphalt rollers) enables safe and efficient close-proximity asphalt rolling in echelon patterns by allowing the trailing machine to adjust proper distance to the lead roller by using the new visual proximity meter on the dash display (or by reacting to the audible warning).
Features & Benefits:
- True gear-driven (no belts!) double drum oscillation
- Select multiple combinations of vibe & osc
- Vibration 3,000 VPM – 10 IPF @ 4.55 MPH
- Several amplitude and frequency settings/combinations per drum at operator’s station
- Counter-rotating eccentric weights
- All vibration controls at instrumental panel
- Chamfered drum edges
- 180 seat rotation
- Heavy-duty hitch design
- Durable rubber isolator system for vibratory drums
- Independent drum vibration
- Great side and curb clearance
- Triple filtered spray system
- Dual drum hydrostatic drive
- Increased drum wear-resistance thanks to alloy with 20% increase in hardness
Standard Safety Equipment
- ROPS
- Guardman Auto Brake Assist System (automatic emergency braking) w/ Echelon Mode
- Sakai proprietary emergency brake pedal which kills the engine and stops the machine instantly.
- 3 inch retractable seat belt
- 39 inches of visibility to the front and rear from the operators seat
- Low profile design for low center of gravity
- Operator deck guard rails
- Horn and backup alarm
- Electric parking brake w/ interlock
Specifications
| DRUM | |
| Size (w x d) | 79 X 55 ins | 2000 X 1370 mm |
| OPERATING | |
| Weight | 29,165 lbs | 13,230 kg |
| OSCILLATION | |
| Frequency | 2,800 vpm | 46.7 Hz |
| Centrifugal Force | 38,600 lbs | 172 kN |
| Normal Amplitude | 0.024″ | 0.60 mm |
| VIBRATION | |
| Frequency | 3,000 vpm | 50 Hz |
| Centrifugal Force | 35,585 lbs | 158 kN |
| Nominal Amplitude | 0.022 ” | 0.55 mm |
| ENGINE | |
| Make & Model | Cummins QSF 3.8 T4 Final |
| Horsepower | 130 HP | 97.0 kw @ 2,200 rpm |
| BRAKING | |
| Systems | Hydrostatic Service Brake + SAHR Parking Brake + Combined Footbrake + Guardman |
OPTIONS
- LED strobe light / beacon
- LED light upgrade (in lieu of standard LEDs)
- LED work lights kit (ROPS mounted)
- LED mat / drum lights
- Cab with Air Conditioning
- Mirror kit (included with Cab)
- Low profile ROPS (total height 122″ vs 128 3/4″)
- Coco mat kit
- Mat temperature sensor w/ display screen
- Fire extinguisher
- Panel light
- Idle shutdown
- Extended warranty: 5 years / 5,000 hours (powertrain & full available)
