RELIABLE. EASY-TO-USE. DURABLE.
- 51"
- 7,740 lbs
- 24 HP Kubota Diesel (No DEF/DPF!)

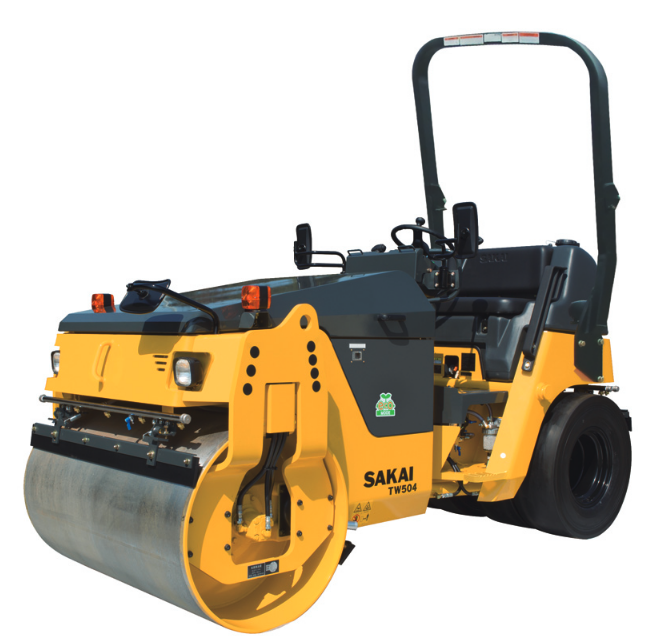

The SAKAI TW504 is a powerful combination roller designed to handle demanding commercial and municipal asphalt paving jobs with the functionality of two machines in one. Its 51-inch vibratory drum and wide pneumatic tires work in tandem to provide both initial compaction and a smooth, final finish in a single pass. This dual-action design, along with its operating weight in the 4-ton class, makes it an ideal choice for parking lots, municipal roads, residential streets, and large driveways.
The TW504’s two-stage compaction process delivers a superior finished product on medium tonnage projects. The front drum’s powerful vibration achieves optimal density, while the pneumatic tires’ kneading effect helps to seal the surface and provide a tight, professional-looking asphalt mat. The operator station provides total control through a simple, no-nonsense control panel with physical switches and knobs, no complex failure-prone multi-function circuit board displays. Its robust, triple-filtered spray system with all-metal nozzles ensures consistent performance and eliminates downtime while the separate on-demand release agent system makes preventing pickup easy. The TW504’s heavy-duty construction and durable design are backed by an industry-leading 3-year / 3,000-hour warranty, offering unmatched peace of mind and reliability on the job.
Features & Benefits:
- Combination of front vibrating drum and rear pneumatic tires (combi)
- Pneumatic tires provide kneading effect for smooth surface finish
- Machined drums with chamfered edges
- Excellent drum edge-to-edge visibility
- Durable rubber isolator system for vibratory drums
- Triple-filtered spray system
- Comfortable bench seat
- Separate release agent tank
- Standard safety features: foldable ROPS, adjustable seat belt, mirrors, turn signals, brake lights, horn, backup alarm, electric parking brake w/ interlock, & foot brake
Applications:
- Small to medium tonnage paving jobs
- Parking lots
- Large or commercial driveways
- Municipal & county roads
- Residential & subdivision streets
- Road maintenance and patch work
- Road shoulders, ramps, & road widening
Specifications
DRUM | |
Type | Front Drum + Rear Tires |
Size (w x d) | 51″ x 31″ | 1,300 X 800 mm |
OPERATING | |
Weight | 7,740 lbs | 3,510 Kg |
VIBRATION (Front Drum) | |
Frequency | 3,100 vpm | 52 Hz |
Centrifugal Force (L / H) | 5,955 / 7,710 lbs | 26.5 / 34.3 kN |
Nominal Amplitude (L / H) | .012″ / .016″ | .30 / .40 mm |
ENGINE | |
Make & Model | Kubota D1703 – Tier 4 Final |
Horsepower | 24 Hp | 18.2 kW @2,200 rpm |
BRAKING | |
Systems | Hydrostatic Service Brake + SAHR Parking Brake + Combined Footbrake |
FLUIDS | |
Diesel Fuel Capacity | 13.2 gal | 50 lit |
Water Tank Capacity | 81.9 gal | 310 lit |
OPTIONS
- NEW! Guardman (Auto Brake Assist System)
- Canopy/sun shade (ROPS mounted)
- LED strobe/Beacon
- Coco mat kit
- LED mat / drum lights
- LED light upgrade (in lieu of standard halogens)
- Extended warranty: 5 years / 5,000 hours (powertrain & full available)
