RELIABLE. EASY-TO-USE. DURABLE.
- 47"
- 5,865 lbs
- 24 HP Kubota Diesel (No DEF/DPF!)

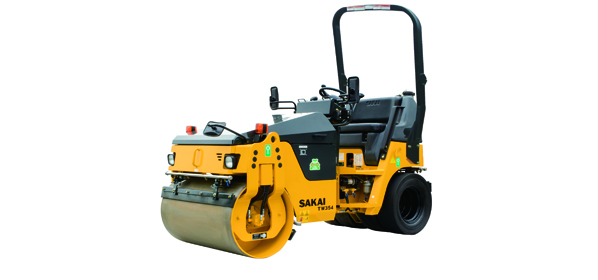

The SAKAI TW354 is a versatile combination roller engineered for small to medium tonnage paving jobs, offering the functionality of two machines in one. This hybrid design allows the asphalt roller to perform both initial compaction and the final surface finish, maximizing efficiency and saving time on the job site. Ideal for a wide range of applications from driveways and parking lots to road maintenance and widening projects, the TW354 is the single machine solution for a superior final product.
The TW354’s dual-action design allows the front drum to achieve initial density while its rear pneumatic tires create a powerful kneading effect for a tight, smooth finish. Operators control this versatile machine with simple switches and knobs, avoiding complex, failure-prone touch screens common on other brand rollers. The durable design also features a robust, triple-filtered spray system with all-metal nozzles, ensuring reliable water flow and eliminating common downtime. With its combination of functionality and durability, the TW354 provides the reliability and ease of use that contractors demand from SAKAI on every pavement compaction project.
Features & Benefits:
- Combination of front vibrating drum and rear pneumatic tires
- Pneumatic tires provide kneading effect for smooth surface finish
- Machined drums with chamfered edges
- Excellent drum edge-to-edge visibility
- Durable rubber isolator system for vibratory drums
- Triple-filtered spray system
- Comfortable bench seat
- Separate release agent tank
- Standard safety features: foldable ROPS, adjustable seat belt, mirrors, turn signals, brake lights, horn, backup alarm, electric parking brake w/ interlock, & foot brake
Applications:
- Small to medium tonnage jobs
- Great for turns – rear tires will not damage curb
- Road shoulders, ramps and widening
- Road maintenance
- Parking lots and driveways
- Municipal and county roads
- Tennis and basketball courts
- Bicycle paths
Specifications:
DRUM | |
Size (w x d) | 47 X 27 ins | 1200 X 675 mm |
OPERATING | |
Weight | 5,865 lbs | 2,660 Kg |
VIBRATION (Front Drum) | |
Frequency | 3,120 vpm | 52 Hz |
Centrifugal Force | 4,630 lbs | 20.6 kN |
Nominal Amplitude | .014 ins | .36 mm |
ENGINE | |
Make & Model | Kubota (Final Tier 4) D1703 |
Horsepower | 24 Hp | 18.2 kW @ 2,200 rpm |
BRAKING | |
Systems | Hydrostatic Service Brake + SAHR Parking Brake + Combined Footbrake |
Fluids | |
Fuel Capacity | 10.6 gal | 40 lit |
Sprinkler Capacity | 53 gal | 200 lit |
OPTIONS
- NEW! Guardman (Auto Brake Assist System)
- Canopy/sun shade (ROPS mounted)
- LED strobe/Beacon
- Coco mat kit
- LED mat / drum lights
- LED light upgrade (in lieu of standard halogens)
- Extended warranty: 5 years / 5,000 hours (powertrain & full available)
