GW754 Vibratory Tire Roller

HomeAsphalt RollersVibratory Tire (10 ton)GW754 Vibratory Tire Roller

RELIABLE. EASY-TO-USE. DURABLE.

  • 77"
  • 19,510 lbs
  • 110 HP Kubota

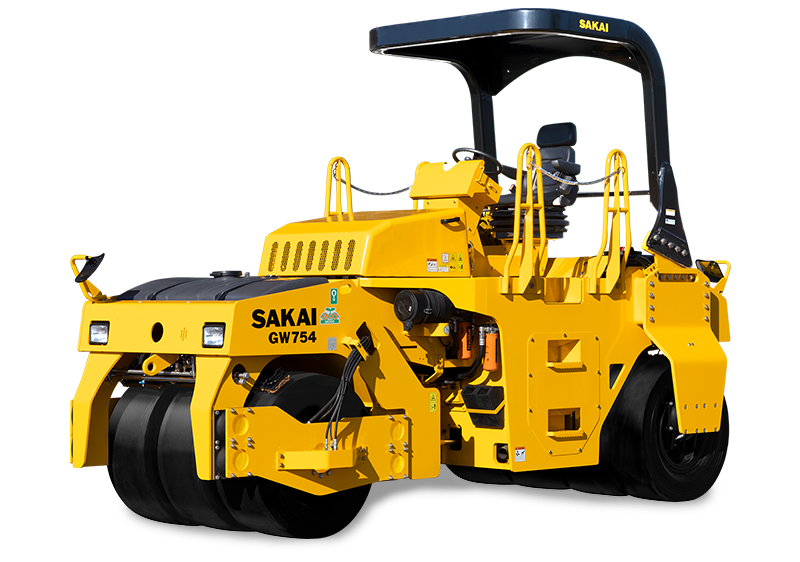

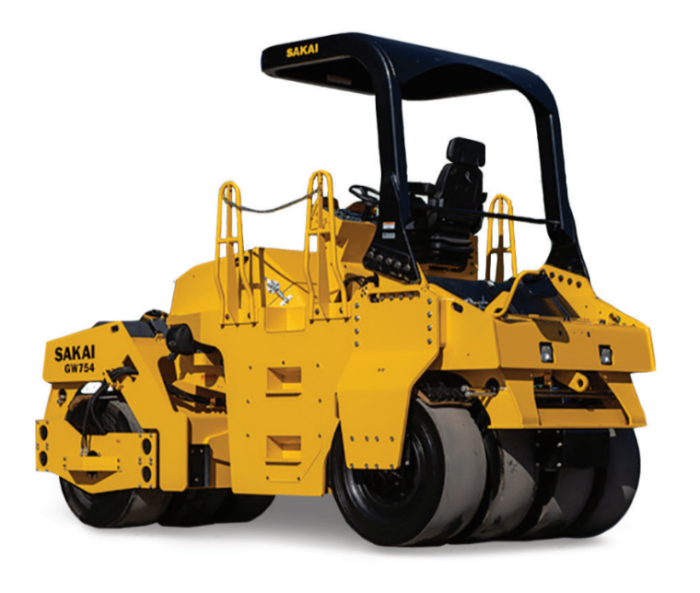

The GW754 from SAKAI is the latest generation of the world’s only vibratory pneumatic tire roller. All other tire rollers or traffic rollers on the market use heavy ballast and high static weight to achieve compaction.

In contrast, the 10 ton GW754 uses front and rear vibratory motors along with uniquely designed superflat tires to produce equal or better compaction versus a 25 ton compactor without the hassle/cost of transporting an extremely heavy machine from job to job. As an added benefit, the vibrating tires knead longitudinal joints and deliver a smoother, more uniformly dense asphalt finish for better bonus potential.

This asphalt roller is ideal for state highway paving, airport runways, medium to large tonnage commercial jobs, municipal roads, shoulders, and ramps. The GW754 compactor can also be utilized for road widening, SMA, cold in-place recycling, thick lifts, roller compacted concrete, and even in compacting base material.

Features & Benefits:

  • Low transport weight
  • Several amplitude and frequency setting combinations per axle
  • Excellent tire edge visibility
  • Great curb clearance
  • Durable rubber isolator system for the vibratory tires
  • Separate release agent tank
  • 180° rotating operator station
  • ECO Mode for fuel savings
  • Standard safety features: ROPS, operator deck chains, seat belt, horn, backup alarm, electric parking brake w/ interlock, & foot brake

Specifications

TIRE
Front Tire Size WxD 55 x 38 in / 1,390 x 970 mm
Rear Tire Size WxD 77 x 38 in / 1,950 x 970 mm
OPERATING
Weight 19,510 lbs / 8,850 kg
COMPACTION
Total Rolling width 77 in / 1,950 mm
ENGINE
Make & Model Kubota V3800 Tier4 Final
Horsepower 110 HP @ 2,400 rpm / 81.8 kW @ 2,400 min-1
BRAKING
Systems Hydrostatic Service Brake + SAHR Parking Brake + Combined Footbrake

OPTIONS

View the GW754 video
