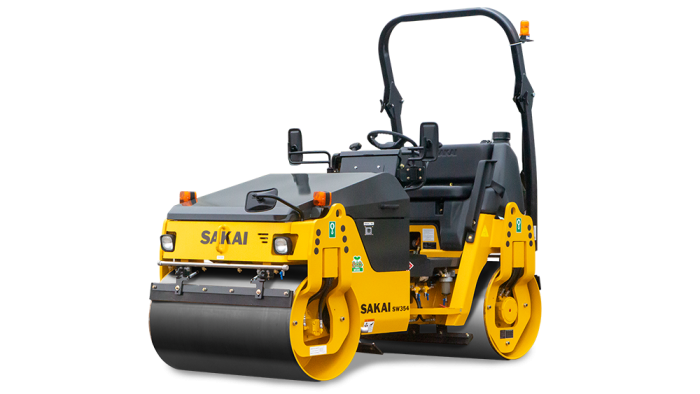

SW354 – Double Drum Asphalt Roller

Home47" & 51" (3 ton), Asphalt Rollers, Ride-On Vibratory RollersSW354 – Double Drum Asphalt Roller


  • 47"
  • 6,525 lbs
  • 24 HP Kubota Diesel (No DEF/DPF!)

The SAKAI SW354 double drum vibratory compactor is one of the most reliable small asphalt rollers on the market. The completely mechanical Kubota diesel requires no aftertreatment and the controls consist of analog switches / knobs instead of complicated touchscreens that are prone to breaking. This translates to a low cost of ownership especially for small or new contractors where machine downtime and lengthy operator training are crippling to profitability.

This 3 ton class roller also makes a fantastic and profitable choice for equipment rental centers due to high utilization. Less downtime from maintenance and operator error means more time out on rent. And when it is time to replace the roller with a newer unit, the resale value is high due to the market perception of SAKAI quality.

Features & Benefits:

  • No DPF, No DEF, No ECM – mechanical engine!
  • ECO-Mode: offering high-performance and low-fuel usage
  • 4,000 VPM
  • Counter-rotating eccentric weights
  • All vibration controls at instrument panel, offering several setup options for a variety of applications & asphalt mix designs
  • Chamfered drum edges reduce checking
  • Operator station with extra-comfort bench seat
  • Excellent drum edge visibility
  • Heavy duty center hitch design
  • Independent drum vibration
  • Superior shock isolation systems
  • Dual drum hydrostatic drive
  • Excellent curb clearance
  • Multi-filtered spray system with timed spray control
  • Front lights and rear work light come standard
  • Standard safety features: foldable ROPS, adjustable seat belt, mirrors, turn signals, brake lights, horn, backup alarm, electric parking brake w/ interlock, & foot brake


  • Small-medium paving projects
  • Parking lot paving
  • Driveway paving
  • Municipal and county roads
  • Road maintenance
  • Asphalt patch work
  • Highway shoulder paving
  • Road widening projects


Size (w x d) 47″ X 27 ins | 1200 X 675 mm
Weight 6,525 lbs | 2,960 Kg
Frequency 4000 vpm | 67 Hz
Centrifugal Force 6,520 lbs | 29 kN
Nominal Amplitude .012 ins | .31 mm
Make & Model Kubota D1703 – Tier 4 Final
Horsepower 24 Hp | 18.2 kW
Systems Hydrostatic Service Brake + SAHR Parking Brake + Combined Footbrake
Diesel Fuel Capacity 10.6 gal | 40 lit
Water Tank Capacity 53 gal | 200 lit
