RELIABLE. EASY-TO-USE. DURABLE.
- 51"
- 8,955 lbs
- 43 HP Kubota

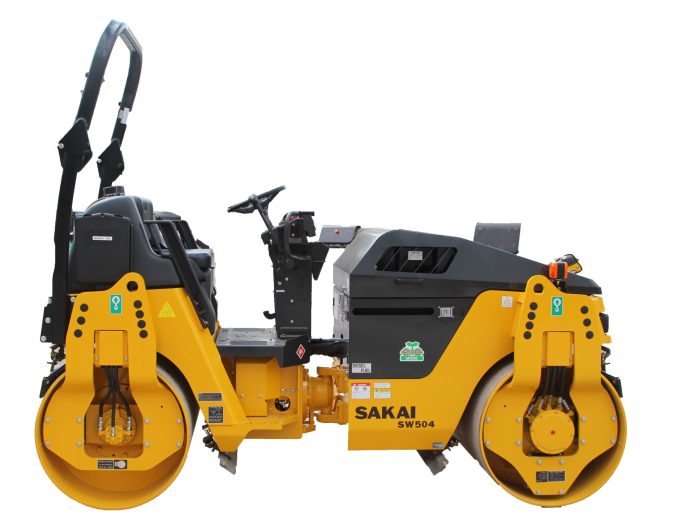

This vibratory double drum asphalt roller is designed to tackle demanding commercial paving jobs like parking lots, large driveways, road widening, highway shoulders, municipal, neighborhood, and residential roads. Its powerful yet reliable Kubota engine hits hard, ensuring consistent results on a wide variety of mix designs and conditions. Its versatile 51-inch drums provide a wider coverage area, allowing operators to be more productive with every pass, ensuring an efficient and precise finish.
The SW504 maintains SAKAI’s core focus on reliability and ease of use. New operators will feel right at home with simple dedicated switches and knobs instead of complicated failure prone multi-function displays. The roller’s large 81.9-gallon water tank is supported by a robust, triple-filtered spray system with all-metal nozzles, ensuring consistent water flow to prevent asphalt pickup and eliminate common downtime. With excellent drum edge visibility, a comfortable bench seat, and a heavy-duty design, including a durable rubber isolator system, the SW504 is a truly reliable and productive machine built to deliver quality results on every job. Backed by an industry-leading 3-year / 3,000-hour warranty, it offers unmatched peace of mind.
Features & Benefits:
- 3,300 VPM
- Counter-rotating eccentric weights
- All vibration controls at instrument panel
- Chamfered drum edges
- Excellent drum edge visibility
- Heavy-duty center hitch design
- Durable rubber isolator system for vibratory drums
- Independent drum vibration
- Great side and curb clearance
- Triple-filtered spray system
- Dual drum hydrostatic drive
- Front lights and rear work light come standard
- Standard safety features: foldable ROPS, adjustable seat belt, mirrors, turn signals, brake lights, horn, backup alarm, electric parking brake w/ interlock, & foot brake
Applications:
- Small to medium tonnage paving jobs
- Parking lots
- Large or commercial driveways
- Municipal & county roads
- Residential & subdivision streets
- Road maintenance and patch work
- Road shoulders, ramps, & road widening
Specifications – SW504
| DRUM | |
| Size (w x d) | 51″ x 31″ | 1,300 X 800 mm |
| OPERATING | |
| Weight | 8,955 lbs | 4,060 kg |
| VIBRATION (Front Drum) | |
| Frequency | 3,300 vpm | 55 Hz |
| Centrifugal Force (L / H) | 5,955 / 7,710 lbs | 26.5 / 34.3 kN |
| Nominal Amplitude (L / H) | .011″ / .014″ | .27 / .35 mm |
| ENGINE | |
| Make & Model | Kubota (Final Tier 4) D1803 |
| Horsepower | 43 Hp | 13.3 kW @2,400 rpm |
| BRAKING | |
| Systems | Hydrostatic Service Brake + SAHR Parking Brake + Combined Footbrake |
| FLUIDS | |
| Diesel Fuel Capacity | 13.2 gal | 50 lit |
| Water Tank Capacity | 81.9 gal | 310 lit |
OPTIONS
- NEW! Guardman (Auto Brake Assist System)
- Canopy/sun shade (ROPS mounted)
- LED strobe/Beacon
- Coco mat kit
- LED mat / drum lights
- LED light upgrade (in lieu of standard halogens)
- Extended warranty: 5 years / 5,000 hours (powertrain & full available)
