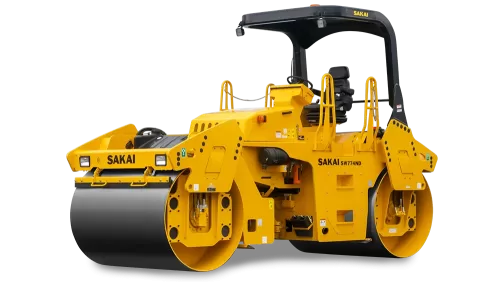

Oscillatory/Vibratory Tandem Rollers
High frequency vibratory asphalt rollers are literally the fastest rollers available, featuring a high frequency of over 4,000 vpm. Designed to beat the tender zone on superpave and other perpetual pavement mixes.
Best Compaction Quality and Efficiency
- Frequency and amplitude modes can be switched from the seat
- Cross-mounted drive and vibration motors help maintain even weight distribution Counter rotation of eccentric weights in the drums cancel horizontal force
- Timer, auto or constant operated water spray system
- Osc achieves density on no-vibe jobs where structural integrity is of concern.
Operator Comfort
- Multi-position operator station (MPOS) (5 positions)
- 180° easy rotating operator console
- Excellent drum edge visibility from the operator seat
Standard Safety Equipment
- ROPS
- Sakai proprietary emergency brake pedal which kills the engine and stops the machine instantly.
- 3 inch retractable seat belt
- Operator deck safety chains
- Turn signals and brake lights
- Horn and backup alarm
- Electric parking brake w/ interlock
Easy Maintenance
- Sprinkler system with plastic water tanks, triple-filtration, removable brass nozzles for ease of maintenance with excellent draining winterization
- Easy ground level access to all check and maintenance points
- Long life drum isolators
- Gear drive Osc/Vibe system (no belts)
Specifications
| DRUM |
| Size (w x d) |
66″ x 49″ | 1,680 x 1,250 mm |
| OPERATING |
| Weight |
22,090 lbs | 10,020 kg |
| VIBRATION |
| Frequency |
2,500 – 4,000 vpm | 41.7 – 66.7 Hz |
| Centrifugal Force |
9,665 – 23,155 lbs | 43 – 103 kN |
| Nominal Amplitude |
0.012″/.020″ | .30 mm/.50 mm |
| ENGINE |
| Make & Model |
Kubota V3800 (Tier 4 Final) |
| Horsepower |
110 Hp @2,400 rpm | 81.8 kW @2,200 rpm |
| BRAKING |
| Systems |
Hydrostatic Service Brake + SAHR Parking Brake + Combined Footbrake |
