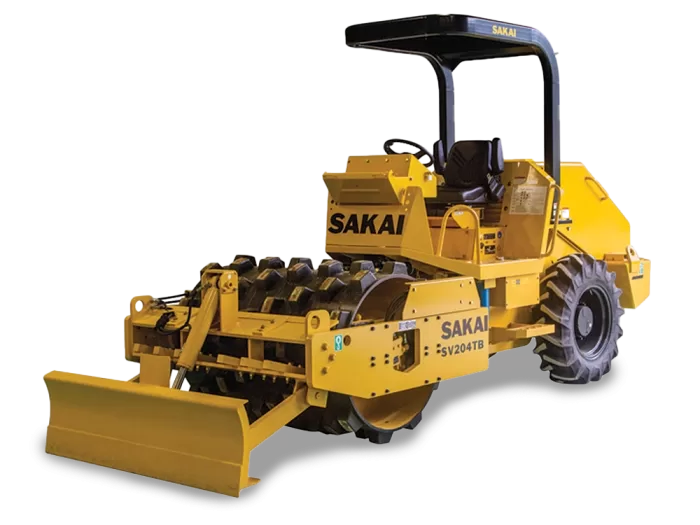

The SV204TB padfoot single drum vibratory soil compactor is designed for demanding projects, featuring a hydraulically-assisted strike-off blade primarily for efficient light duty leveling and site preparation. Engineered for deep, kneaded compaction in cohesive and semi-cohesive soils (including clay, silt, and mixed clay-sand compositions), this 10,220 lb compactor provides an outstanding power-to-weight ratio. Powered by a dependable Kubota diesel engine, the SV204TB boasts excellent traction via its limited-slip hydraulic drive, no-slip axle, and rugged tractor tires, ensuring consistent performance on grades up to 52%. It’s an ideal choice for low to medium production site work and large trench compaction.
Reflecting SAKAI’s unwavering commitment to enduring quality and intuitive operation, the SV204TB provides exceptional user experience. Operators benefit from an uncluttered control panel featuring simple analog switches and knobs, ensuring hassle-free machine management without complex, failure-prone touchscreens. Its heavy-duty center hitch design and superior shock isolation system enhance both structural integrity and operator comfort. With practical features like a raised exhaust for trenches, the SV204TB stands as a robust and trustworthy choice for achieving uniform density in challenging cohesive ground conditions.
Features & Benefits:
- High centrifugal force outputs
- Several amplitude and frequency setting combinations
- All vibration controls at instrument panel
- Heavy duty center hitch design
- Superior shock isolation system
- Independent drum vibration
- ROPS and seat belt
- Raised exhaust for trench work
- Limited-slip hydraulic drive, a no-slip axle, and tractor tires combine to optimize traction
- Standard safety equipment: ROPS, retractable seat belt, horn, backup alarm, operator deck hand rails, electric parking brake w/ interlock, & foot brake
Applications:
- Low to medium production site work
- Cohesive soil types (clay, clay rich soils, and silt)
- Semi-cohesive soils (mixtures of clay with sand or silt)
- Residential construction
- Confined areas
- Large trench compaction
- Utility and repair work
- Light-duty backfilling (w/ blade)
Specifications
| DRUM |
| Type |
Padfoot / Sheepsfoot Single Drum |
| Size (w x d) |
54X41 ins | 1370X1050 mm |
| OPERATING |
| Weight |
11,100 lbs | 5,035kg |
| Gradability |
46% |
| VIBRATION |
| Frequency |
1,800 vpm | 30 Hz |
| Centrifugal Force |
16,635 lbs | 74 kN |
| Nominal Amplitude |
.060 ins | 1.52 mm |
| ENGINE |
| Make & Model |
Kubota V3307 Diesel – Tier 4 Final |
| Horsepower |
73 Hp @ 2200 rpm | 54.6 kW @ 2200 min-1 |
| BRAKING |
| Systems |
Hydrostatic Service Brake + SAHR + Combined Footbrake |
