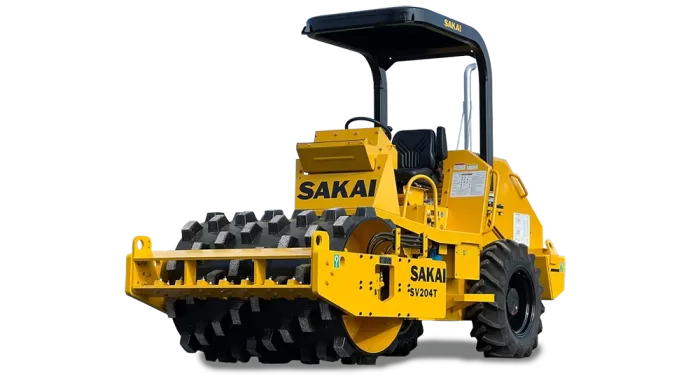

The SV204T padfoot single drum vibratory soil compactor is engineered for superior performance in cohesive and semi-cohesive soils where deep, kneaded compaction is essential. Ideal for materials like clay, clay-rich soils, silt, and mixtures of clay with sand or silt, this 10,220 lb compactor, powered by a reliable Kubota diesel, offers an exceptional high power-to-weight ratio. Its excellent traction, delivered by a limited-slip hydraulic drive, no-slip axle, and rugged tractor tires, ensures consistent compaction on demanding grades up to 52%, making it perfect for low to medium production site work and large trench compaction.

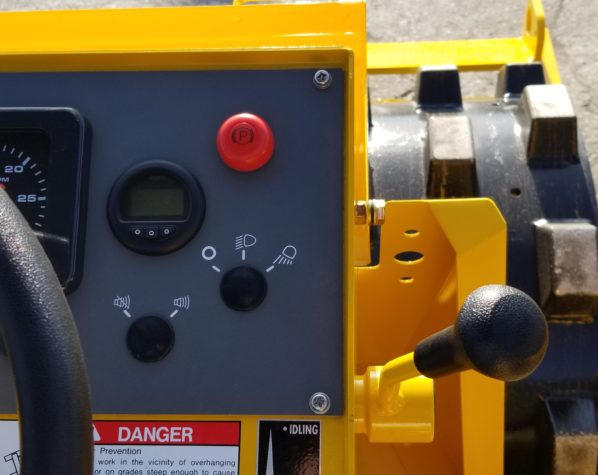

Built for lasting reliability and user-friendly operation, the SV204T reflects SAKAI’s commitment to quality. Operators will appreciate its intuitive control panel with simple analog switches and knobs, ensuring straightforward machine management without the complexity of touchscreens. A heavy-duty center hitch design and superior shock isolation system contribute to its overall durability and operator comfort. With practical features like a raised exhaust ideal for trench work, the SV204T stands as a formidable and dependable choice for achieving optimal density in challenging cohesive ground conditions.
Features & Benefits:
- High centrifugal force outputs
- Several amplitude and frequency setting combinations
- All vibration controls at instrument panel
- Heavy duty center hitch design
- Superior shock isolation system
- Independent drum vibration
- ROPS and seat belt
- Raised exhaust for trench work
- Limited-slip hydraulic drive, a no-slip axle, and tractor tires combine to optimize traction
- Standard safety equipment: ROPS, retractable seat belt, horn, backup alarm, operator deck hand rails, electric parking brake w/ interlock, & foot brake
Applications:
- Low to medium production site work
- Cohesive soil types (clay, clay rich soils, and silt)
- Semi-cohesive soils (mixtures of clay with sand or silt)
- Residential construction
- Confined areas
- Large trench compaction
- Utility and repair work
Specifications
| DRUM |
| Type |
Padfoot Single Drum |
| Size (w x d) |
54X341 ins | 1370X10500 mm |
| OPERATING |
| Weight |
10,525 lbs | 4,775 kg |
| Gradability |
52% |
| VIBRATION |
| Frequency |
1,800 vpm | 30 Hz |
| Centrifugal Force |
16,635 lbs | 74 kN |
| Nominal Amplitude |
.060 ins | 1.52 mm |
| ENGINE |
| Make & Model |
Kubota Tier 4F V3307-CR-T-EF05 (Diesel) |
| Horsepower |
73 Hp @ 2200 rpm | 54.6 kW @ 2200 min-1 |
| BRAKING |
| Systems |
Hydrostatic Service Brake + SAHR + Combined Footbrake |
