RELIABLE. EASY-TO-USE. DURABLE.
- 84"
- 25,330 lbs
- 148 HP Cummins
NEW! This updated SV544-1 series has replaced the SV544 series. Primary enhancements are the more powerful & fuel efficient F3.8 engine as well as some packaging changes.

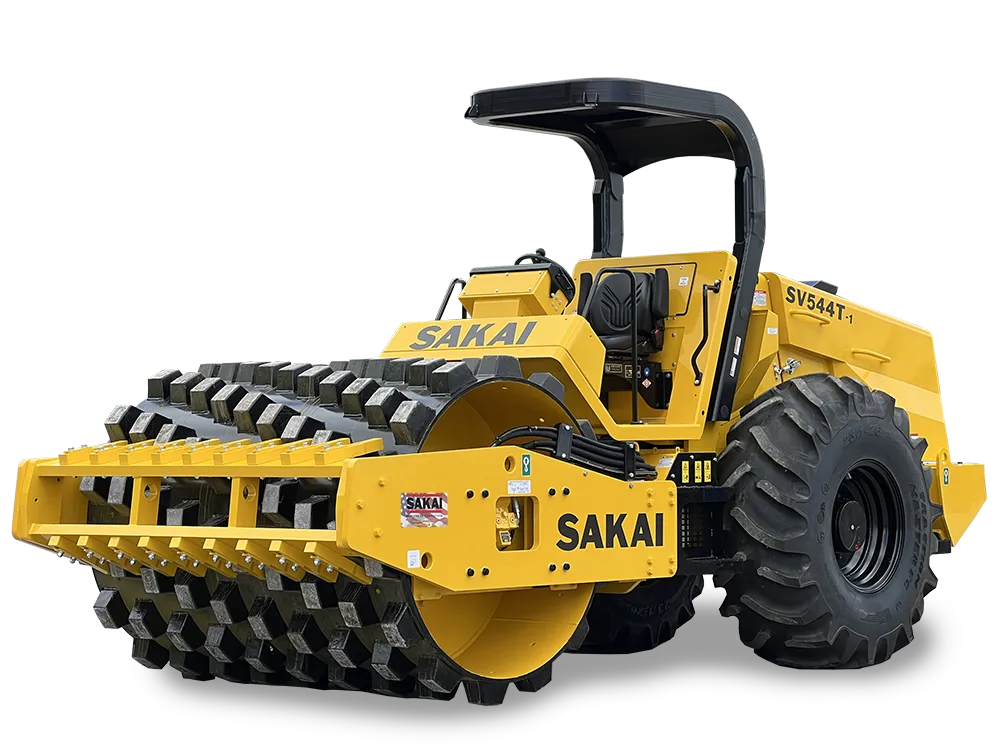

Engineered for robust performance on medium to high production site work, the SV544T-1 84-inch padfoot single drum vibratory soil compactor delivers exceptional results. Weighing approximately 12.6 tons, this powerful roller is purpose-built for efficiently compacting cohesive and semi-cohesive soils typical of demanding projects like highway and airport subgrades and subbases, large embankments, and commercial industrial tracts. Powered by a 148 HP Cummins diesel, the SV544T-1 ensures sustained power and efficiency. Its standard, user-selectable traction control system provides confident operation even on slopes up to approximately 32 degrees (63% grade), proving invaluable for challenging inclines and tough terrains.
The SV544T-1 compactor embodies SAKAI’s legacy of dependability, durability, and user-friendly design. Operators will appreciate the intuitive control layout, featuring physical switches and knobs for precise command and a reduced learning curve for new personnel, all without the complexities of modern touchscreens. Built with a heavy-duty center hitch and long-lasting drum isolators, this SAKAI compactor is designed for maximum uptime and minimal maintenance. Choose the SV544T-1 for a powerful, reliable, and consistently productive compaction solution for your most demanding site prep needs.
Traction Control Comes Standard
- High traction capability ensures compaction in both forward and reverse — even on jobs with soft ground, slopes or rough terrains.
- Selectable traction control allows forward slope and reverse slope operation.
Vibration System
- There are 2 range of vibration, high amplitude and low amplitude.
- Reaches target density in fewer roller passes.
- Achieves uniform compaction throughout lift thickness.
Long Lasting Drum Isolator System
- SAKAI’s unique drum mounting system extends the life of the drum isolators.
- Patented drum vibration isolation system and floating deck keep the operator free from vibration.
- Durable, high quality components such as hydraulics, drum and center-pin hitch assure longer life and lower maintenance costs.
Standard Safety Equipment
- ROPS
- SAKAI proprietary emergency brake pedal which kills the engine and stops the machine instantly
- Retractable seat belt
- Horn and backup alarm
- Operator deck hand rails
- Electric parking brake w/ interlock
Applications:
- Medium to high compaction site work
- Cohesive soils (clay, silt, or clay-rich soils)
- Semi-cohesive soils (mixtures of clay with sand and silt)
- Highway and airport subgrades and subbases
- Embankments
- Dams and reservoirs
- Large commercial and industrial tracts
Specifications
| DRUM | |
| Type | Padfoot / Sheeps foot |
| Size (w x d) | 84″ x 63″ | 2,130 x 1,600 mm |
| OPERATING | |
| Weight | 25,330 lbs | 11,490 kg |
| Gradeability | 63% |
| VIBRATION | |
| Frequency (Low / High) | 2,000 vpm/1,730 vpm | 33.3 Hz/28.8 Hz |
| Centrifugal Force (Low / High) | 33,720 lbs/57,325 lbs | 150 kN/255 kN |
| Nominal Amplitude (Low / High) | 0.033″/.074″ | 0.83 mm/1.88 mm |
| ENGINE | |
| Make & Model | Cummins F3.8 Performance Series (EPA Tier 4 Final / EU Stage V) |
| Horsepower | 148 HP@ 2200 rpm | 110 kW @ 2200 min-1 |
| BRAKING | |
| Systems | Hydrostatic Service Brake + SAHR + Combined Footbrake |
OPTIONS
- LED strobe light / beacon
- LED work lights kit
- Leveling blade kit (strike-off or dozer)

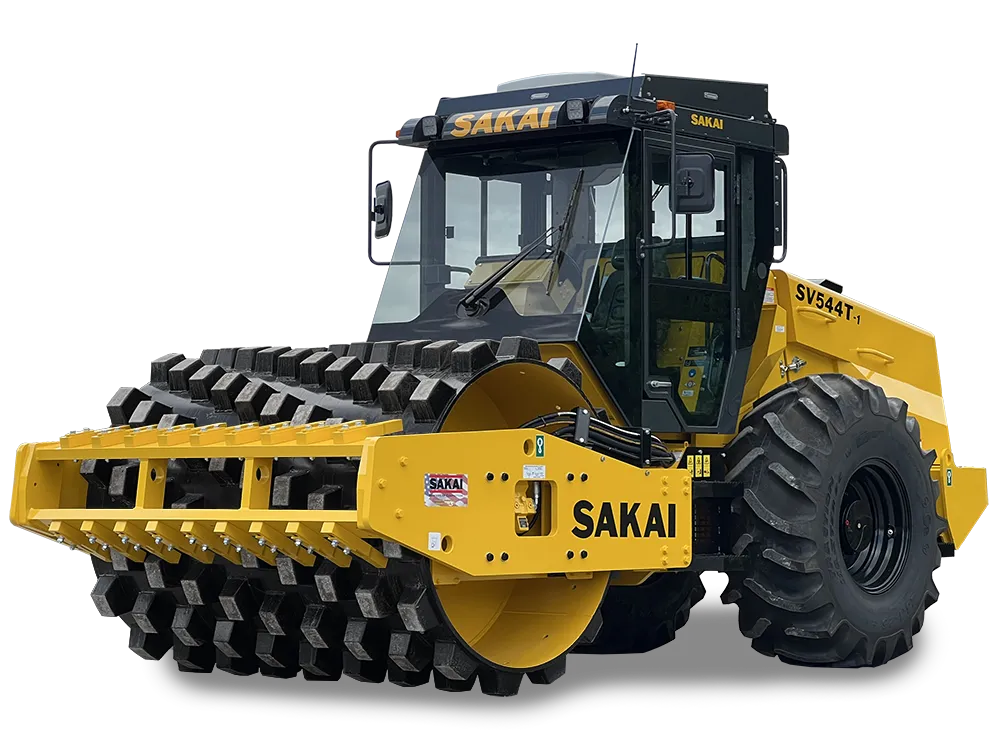

- Cab with air conditioning
- Mirror kit (included w/ cab)
- Suspension seat
- Locking DEF cap
- Smooth drum shell kit
- Idle shutdown
- Fire extinguisher
- Extended warranty: 5 years / 5,000 hours (powertrain & full available)
