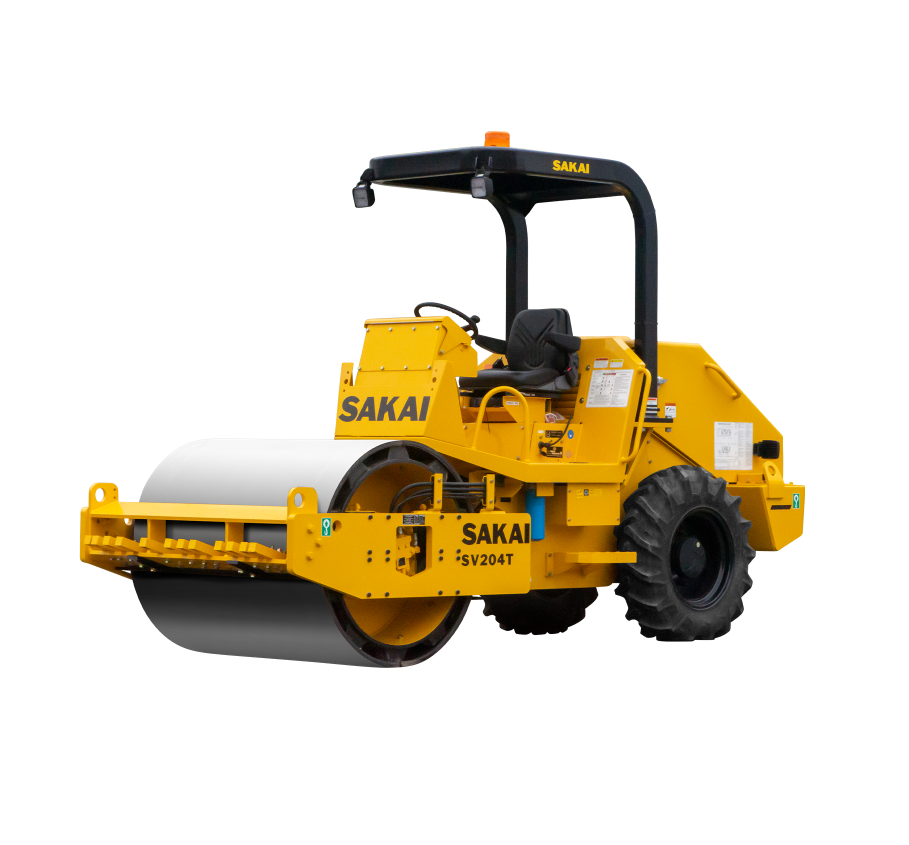

Sakai SV204 soil compactor machine or dirt roller with a single padfoot drum and removable smooth shell kit. Used for site work, site prep, dirtwork, earthwork, and civil construction.
SV204TF operator dash buttons for engine warning, engine stop, and over heat.
Optional 54" smooth shell kit over sheepsfoot or pad foot drum.
Side view of SV204TF smooth shell kit factory installed over padfoot or sheeps foot drum.
SV204TF compact soil compactor with smooth shell kit over padfoot drum.
SV204TF soil compactor smooth shell kit fastening system to prevent side to side movement.
Operator deck and step on the SV204TF soil roller.
SV204D soil roller forward and reverse cable drive lever.

RELIABLE. EASY-TO-USE. DURABLE.

  • 54"
  • 11,980 lbs
  • 73 HP Kubota

The SV204TF single drum vibratory soil compactor offers unmatched versatility for a wide range of site prep demands, featuring a padfoot drum with a removable, two-piece smooth shell kit. Our shell design is widely known for its quicker installation and bolts directly through the drum to prevent shifting under use. With the shell, it excels at smooth compaction for granular materials (sand, gravel, and crushed rock), while the padfoot is ideal for deep, kneading compaction of cohesive soils (like clay and silt). Powered by a reliable Kubota diesel engine, this 10,220 lb compactor provides an exceptional power-to-weight ratio. Its excellent traction, delivered by a limited-slip hydraulic drive, no-slip axle, and rugged tractor tires, ensures consistent performance on grades up to 52%, making it ideal for diverse site work and trench compaction.

Built for lasting reliability and user-friendly operation, the SV204TF reflects SAKAI’s commitment to quality. Operators will appreciate its intuitive control panel with simple analog switches and knobs, ensuring straightforward machine management without complex, failure-prone touchscreens. A heavy-duty center hitch design and superior shock isolation system enhance both structural integrity and operator comfort. With practical features like a raised exhaust ideal for trench work, the SV204TF stands as a robust and dependable choice for achieving optimal density across a broad spectrum of ground conditions.

Features & Benefits:

  • High centrifugal force outputs
  • Several amplitude and frequency setting combinations
  • All vibration controls at instrument panel
  • Heavy duty center hitch design
  • Superior shock isolation system
  • Independent drum vibration
  • Raised exhaust for trench work
  • Limited-slip hydraulic drive, a no-slip axle, and tractor tires combine to optimize traction
  • Standard safety equipment: ROPS, retractable seat belt, horn, backup alarm, operator deck hand rails, electric parking brake w/ interlock, & foot brake

Applications:

  • Low to medium production site work
  • Cohesive soil types (clay, clay rich soils, and silt)
  • Semi-cohesive soils (mixtures of clay with sand or silt)
  • w/ Smooth Shell: Granular soils (sand, gravel, crushed rock)
  • Residential construction
  • Confined areas
  • Large trench compaction
  • Utility and repair work

Specifications

DRUM
Type Padfoot Single Drum with Smooth Shell kit
Size (w x d) 54X43 ins | 1370X1090 mm
OPERATING
Weight 12,070 lbs | 5,475 kg
Gradability 52%
VIBRATION
Frequency 1,800 vpm | 30 Hz
Centrifugal Force 16,635 lbs | 74 kN
Nominal Amplitude .039 ins | 1.00 mm
ENGINE
Make & Model Kubota Tier 4F V3307-CR-T-EF05 (Diesel)
Horsepower 73 Hp @ 2200 rpm | 54.6 kW @ 2200 min-1
BRAKING
Systems Hydrostatic Service Brake + SAHR + Combined Footbrake

OPTIONS
