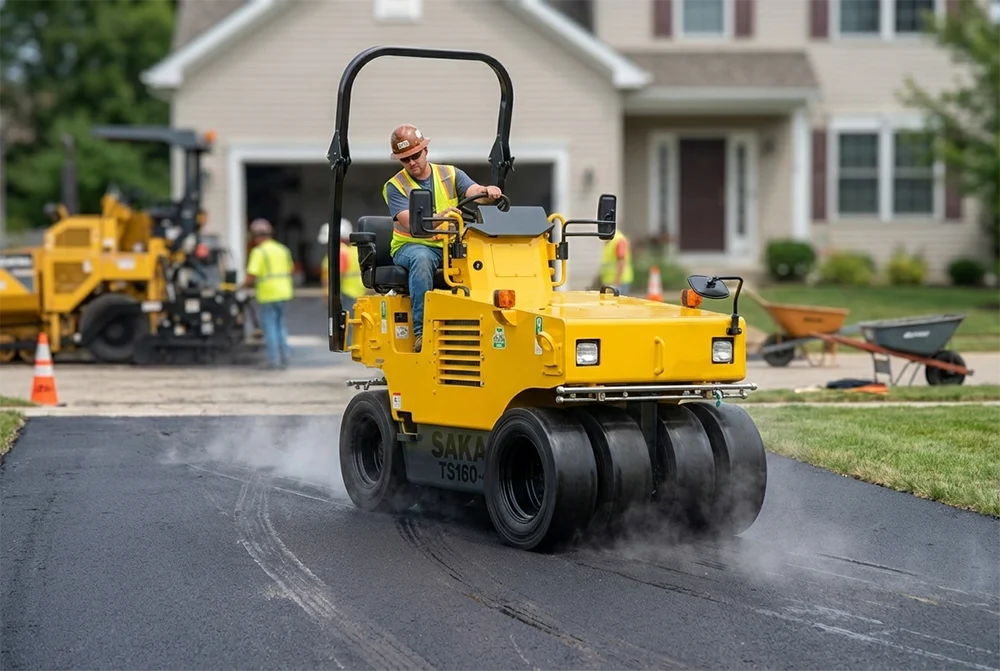

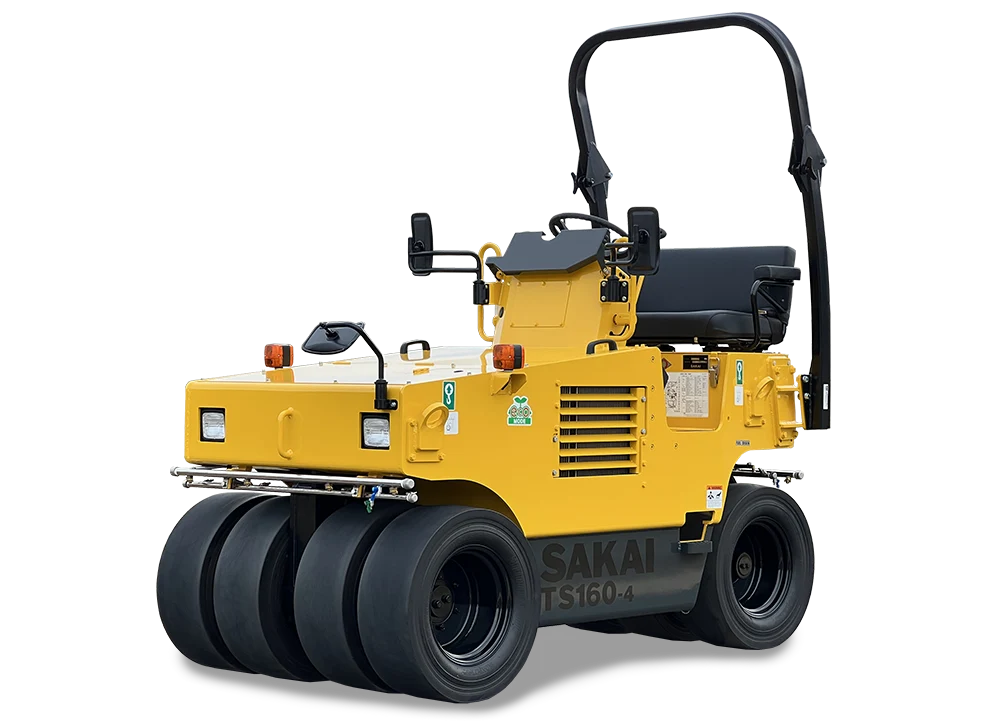

The SAKAI TS160-4 is a versatile 3-ton-class static pneumatic tire roller designed for high-quality finishing on parking lots, driveways, and municipal roads. Its seven-tire configuration features four “superflat” tires in the front and three in the rear to knead asphalt into a uniform, sealed surface with reduced permeability. The compact frame provides operators with excellent 360-degree visibility for precision work right up to the edge of the job site.
Engineered for productivity, the TS160-4 utilizes rear-wheel steering for superior maneuverability in tight urban spaces. The reliable Kubota engine requires no aftertreatment, which simplifies maintenance while ensuring consistent performance. Key features include a comfortable bench seat, intuitive analog controls, and a heavy-duty water system with triple-filtration and all-metal spray bars for reliable daily operation.
The TS160-4 is quality built in Japan and fully backed by USA-based support and parts.
Features:
- Triple-fltered water system w/ timer
- All-metal spray nozzles and bars: no plastic!
- Comfortable wide bench seat
- Specially-designed “superflat” tires
- 12V outlet for charging devices
- Safety: folding ROPS, seatbelt, emergency foot-brake
Benefits:
- No DPF, No DEF, No ECM. Mechanical diesel = simplifed maintenance
- Simple analog controls: no failure-prone touch screens or multi-function panels

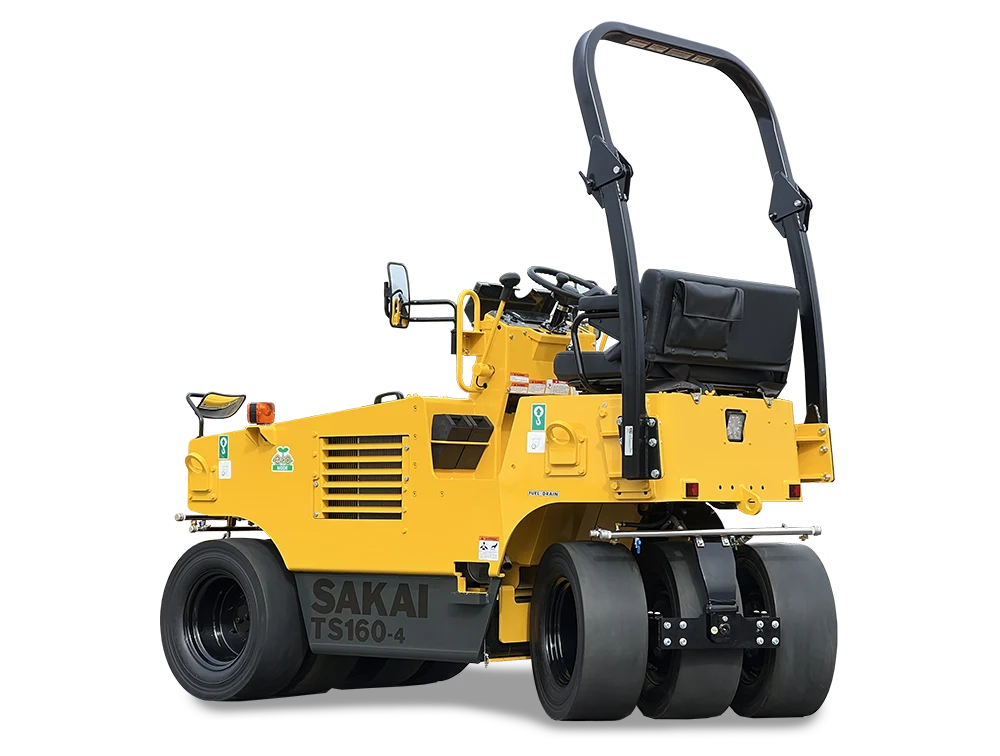

- Rear steering provides superior maneuverability in tight spaces and around curves
- Exceptional operating visibility via wide bench seat w/ ambidextrous FNR levers
- Industry-leading 3 year / 3,000 hour warranty
- Quality-built in Japan and fully-backed by USA-based support/parts in Georgia
Applications:
-
- Driveway paving
- Parking lot paving
- Light chip seal duty
- Municipal paving
Specifications
| TIRE |
| Front Tire Size x QTY |
9.5 / 65 – 15 – 6PR (OR) × 4 |
| Rear Tire Size x QTY |
9.5 / 65 – 15 – 6PR (OR) × 3 |
| OPERATING |
| Weight |
6,515 lbs / 2,955 kg |
| COMPACTION |
| Total Rolling width |
51 in / 1,300 mm |
| ENGINE |
| Make & Model |
Kubota D1105 Tier4 Final |
| Horsepower |
21 HP @ 2,400 rpm / 15.6 kW @ 2,400 min-1 |
| BRAKING |
| Systems |
Hydrostatic Service Brake + SAHR Parking Brake + Combined Footbrake |
| FLUIDS |
| Diesel Fuel Capacity |
9.5 gal | 36 lit |
| Water Tank Capacity |
43.6 gal | 165 lit |
| Release Agent Tank Capacity |
2.6 gal | 10 lit |
OPTIONS
