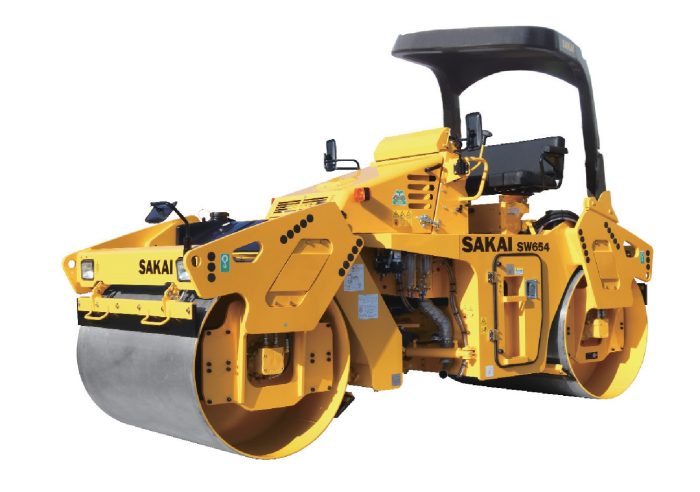

The SW654 is a reliable 8-ton class vibratory double drum asphalt roller designed to achieve critical density and superior smoothness in paving. This compactor features 58-inch drums that deliver powerful and consistent vibratory compaction for a wide range of applications, including municipal roads, commercial parking lots, and general street paving, ensuring efficient coverage and high productivity on standard asphalt jobs.
Built for reliability, durability, and ease of use, the SAKAI SW654 features a dependable Kubota diesel engine. Its heavy-duty center hitch design is a cornerstone of its heavy-duty construction, contributing significantly to the machine’s extended service life. Operators benefit from intuitive, tactile physical switches and knobs, eliminating complicated multi-function panels or touchscreens for straightforward control. With its triple-filtered spray system with durable metal nozzles, the SW654 provides consistent watering of the drum and a smooth finish, making it the smart choice for efficient, high-quality asphalt compaction.
Features & Benefits:
- All vibration controls at instrument panel
- Chamfered drum edges
- Excellent drum edge visibility
- Heavy duty center hitch design
- Superior shock isolation systems
- Independent drum vibration
- Great side and curb clearance
- Multi-filtered spray system
- Dual drum hydrostatic drive
- Front and rear lights
- Sliding and adjustable seat
- Standard safety equipment: ROPS, adjustable seat belt, mirrors, turn signals, brake lights, horn, backup alarm, electric parking brake w/ interlock, & foot brake
Applications:
- Small to large tonnage paving jobs
- Municipal & county roads
- City, residential, & subdivision streets
- State highways
- Commercial parking lots
- Commercial driveways
- Road shoulders, ramps, & road widening
Specifications
| DRUM |
| Size (w x d) |
58 X 42 ins | 1480 X 1070 mm |
| OPERATING |
| Weight |
15,585 lbs | 7,070 kg |
| VIBRATION |
| Frequency |
3,000-4000 vpm | 50-66.7 Hz |
| Centrifugal Force |
13,940-15,510 lbs | 62-69 kN |
| Nominal Amplitude |
0.011″/0.021″ | 0.27/0.53 mm |
| ENGINE |
| Make & Model |
Kubota V3307 T4 Final |
| Horsepower |
73 Hp | 54.6 kW @ 2200 rpm |
| BRAKING |
| Systems |
Hydrostatic Drive System Service Brake + SAHR Parking Brake + Combined Foot brake |
| FLUIDS |
| Diesel Fuel Capacity |
31.7 gal | 120 lit |
| Water Tank Capacity |
2x 79.3 gal | 2x 300 lit |
